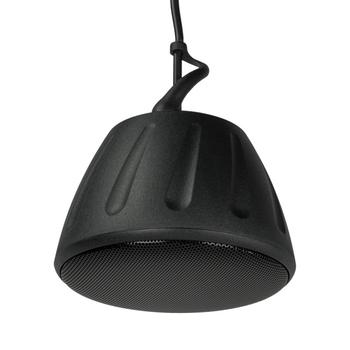

SOUNDTUBE RS31-EZ-T-BK 3 Hanging Speaker in Black with Transformer
|
|
SOUNDTUBE RS31-EZ-T-BK 3 Hanging Speaker in Black with Transformer
|
SoundTube RS31-EZ-T Hanging Speaker with added Transformer in Black
RS31-EZ-T-BK
SoundTube 3" Hanging Speaker in Black with Transformer
The RS31-EZ-T is a premium full-range 3 inch pendant-mount speaker, with a polypropylene driver and butyl rubber surround and includes a 20-watt transform (transformer does not include 8 ohm bypass). The RS31-EZ incorporates the ultra-low profile ZeroReflection™ ABS enclosure (4.35 inch diameter by 4.35 inch height without stabilizing arm) and a 10ft length of speaker signal/hanging cable for on-ceiling applications. The RS31-EZ-T also includes a ceiling cap with a diameter of 5" and a middle depth of 2". The mounting plate arms inside the cover measure 4.75" x 4.5" and the transformer is 1.125" x 1.625" with a depth of 1.5". The speaker components have been weatherized for indoor/outdoor applications. Mounting element, cover plate, and 10ft speaker signal/hanging cable are included. Includes a 20-watt transformer.
Specifications:
| Color
| Black |
| UPC
| 752830443181 |
| Manufacturer
| SoundTube |
| Manufacturer's Category
| RS-EZ Economical Pendant |
| Height
| 4.94 in / 125.4 mm |
| Width/Diameter
| 4.35 in / 110.5 mm |
| Shipping Weight
| 3 lbs / 1.36 kg |
| Carton Height
| 6.75 in / 171.45 mm |
| Carton Length
| 10 in / 254 mm |
| Carton Width
| 6.75 in / 171.45 mm |
| Certifications
| CE, RoHS, UL1480A |
| Enclosure Properties
| ABS Glass Fiber Reinforced, Injection Molded, Sealed |
| Enclosure Volume
| 60 cu in / 983.22 cu cm |
| Included Accessories
| Cover Plate, Hanging Hardware, Wire Nuts |
| Optional Accessories
| Black Grille (GRL-RS31-BK)|Black Split Loom Tubing (AC-SLT-10-BK) |
| Source Inputs
| Terminal Strip |
| IP Rating
| IP64 |
| TAA Compliant (Trade America)
| No |
| BAA Compliant (Made in USA)
| No |
| Coverage Angle (±6dB @ 2kHz)
| 45° |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)
| 4.9 and 7.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)
| 5.1dB and 8.5dB |
| Frequency Response (± 10 dB)
| 120 Hz - 22 kHz |
| Frequency Response (± 3 dB)
| 170 Hz - 14 kHz |
| Grille Properties
| Aluminum, Powder-Coated |
| Low Frequency Voice Coil
| 0.75 in / 19 mm |
| Max. Continuous Power RMS
| 20W |
| Max. Program Power
| 40 W |
| Mounting Depth
| 3.81 in / 96.8 mm |
| Nominal Impedance (Ω Ohms)
| 8 Ω |
| Fullrange Driver
| 3" Polypropylene driver with butyl rubber surround |
| Sensitivity dB @ 1W/1M
| 85 dB |
| Sensitivity dB @ 2.83V/1M
| 85 dB |
| Tap Selector
| Terminal Block |
| Transformer Options
| 25 / 70.7 / 100 V |
