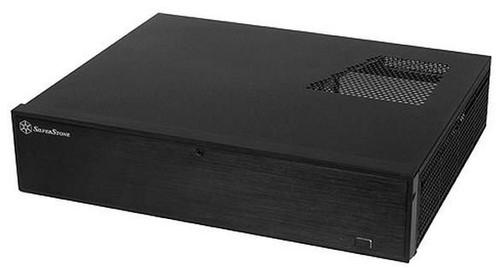

SILVERSTONE Ml04 Htpc Black
|
|
SILVERSTONE Ml04 Htpc Black
Varenr.:
SST-ML04B USB 3.0
-
Strømforsyning
0W
-
Type
HTPC
-
Farve
Sort
|
Beskrivelse
Specifikationer
Ekspertanmeldelser
ML04
Continuing where the popular Milo ML03 left off, the Milo ML04 HTPC case again combines the full size features of Grandia series with slim form factor dimensions. The ML04 has a profile of 105mm height and 350mm depth, making it extremely easy to integrate into any living room furniture. Incredibly, this case can accommodate up to three 3.5” hard drives or five 2.5” HDD/SSD through its smartly designed drive cages that can mount either size without any use of adapters. The distinguishing feature of the ML04 is its lockable aluminum front door that is similar in design as the larger GD07 case with a LED dimmer that adds not only security but also improve integration in home theater environments. For those looking to build an HTPC with good expansion and cooling capability but has limited room and budget, the SilverStone Milo ML04 is an excellent alternative to the ML03.
Features:
- Support up to four 80mm fans
- Drive cages with multi-purpose mounts eliminate need for adapters
- Easy to install and cable route
- Support standard PS2(ATX) power supplies
- Support low profile expansion cards
- Incredible 350mm depth to fit comfortably inside home theater cabinet
- Lockable front door and power button ensure security of system and drives
- LED indicator with adjustable brightness
Specifications:
|
Model No. |
SST-ML04B (black) |
| -- |
| -- |
| -- |
|
Material |
Aluminum front door and plastic front panel, steel body |
|
Motherboard |
Micro-ATX,
DTX,
Mini-ITX |
|
|
-- |
|
Multimedia |
-- |
|
Drive Bay |
External |
5.25" x 1 (compatible with one 3.5” HDD or two 2.5” HDD/SSD) |
| None |
| Internal
|
3.5" x 2 (compatible with one 2.5” HDD each), 2.5” x1 |
|
Cooling System |
Front |
-- |
| Rear |
-- |
| Side |
Right: 4 x 80mm fan slot; Left: Hard drive vents |
| Top |
Oversized CPU vents with included FF141 fan filter |
| Bottom |
-- |
| Internal |
-- |
|
Expansion Slot |
4+1 |
|
Front I/O Port |
USB 3.0 x 2
audio x 1
MIC x 1
|
|
Power Supply |
Optional standard
PS2(ATX) up to 140mm |
|
Operating system support |
-- |
|
Expansion Card |
4 x low profile + 1 x utility, width restriction-2.95" |
|
Limitation of CPU cooler |
70mm |
|
Limitation of PSU |
140mm |
|
Net Weight |
4kg |
|
Dimension |
440 mm (W) x 105 mm (H) x 350 mm (D), 16.2 liters |
|
Extra |
-- |
|
|
-- |
| Formfaktor | HTPC |
| Type | PC |
| Materiale | Metal |
| Farve på produkt | Sort |
| Understøttet motherboard, formfaktorer | Micro ATX,Mini-DTX,Mini-ITX |
| Antal 3.5" bays | 2 |
| Antal 5.25" bays | 1 |
| Antal interne 3.5" bays | 2 |
| Antal eksterne 5.25" bays | 1 |
| Antal udvidelses-slots | 5 |
| Siderude | Nej |
| Velegnet til | Hjemme/kontor |
| Indbyggede højttaler(e) | Nej |
| Knap til nulstilling | Ja |
| Maksimal CPU blæser højde | 7 cm |
| Maksimal PSU længde | 14 cm |
| Strømforsyning inkluderet | Nej |
| Antal USB 3.0 (3.1 Gen 1) Type-A porte | 2 |
| Audioindgang | Ja |
| Audioudgang | Ja |
| Maksimal side-blæser | 4 |
| Understøttet diameter på side-blæser | 80 mm |
| Understøttede harddisk drev størrelser | 2.5,3.5" |
| Bredde | 440 mm |
| Dybde | 350 mm |
| Højde | 105 mm |
| Vægt | 4 kg |
