RAIDSONIC We-Ra. IcyDock 2x6,3cm SATAI-III/SAS HDD&SSD in 1x3,5"" Metal
|
|
RAIDSONIC We-Ra. IcyDock 2x6,3cm SATAI-III/SAS HDD&SSD in 1x3,5"" Metal
-
Installeret
0GB
-
Max diske
2
-
RAID
Nej
-
Tilslutning
SATA
-
Type
Intern
-
Diskstørrelse
2.5"
|
Beskrivelse
Ekspertanmeldelser

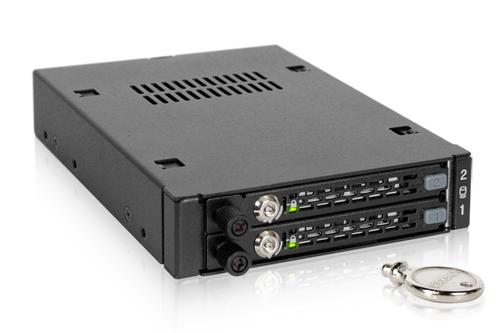

Industrial Rugged Full Metal 2 x 2.5” SATA/SAS HDD & SSD Mobile Rack for External 3.5" Drive Bay
MB492SKL-B
The ICY DOCK ToughArmor EX MB492SKL-B dual bay 2.5” mobile rack is built specifically for industrial small form factor systems that require exceptional drive security. It uses a rugged heavy duty metal construction, which is considered to be compliant with flammability requirements and is capable to withstand the harshest environments. The metal key lock prevents unauthorized access your important drives and the thumb screw lock adds extra protection from impact, and reduces drive tray vibration which increases drive stability during transportation. Our removable drive tray allows interchangeability of data between multiple systems.
Features:
- Low profile design for small form factor applications such as industrial small PCs, surveillance, embedded systems, automation systems, aerospace systems and mobile DVR systems
- Fits two drives in a single 3.5” front device bay which is perfect for RAID configurations
- Dual Lock Design - Metal key lock (for drive security) and thumb screw lock (for impact/vibration)
- Removable drive tray design allows easy maintenance and fully supports SATA hot-swap
- Unique drive ID plugs for drive trays are included (#1 - #8)
- Fits 2 x 5mm to 9.5mm height 2.5” SATA HDD or SSD in a external 3.5” drive bay
- Supports SAS or SATA HDD/SSD at 6Gbps and is backwards compatible with SATA 3Gbps drives and hosts (SAS host is required for SAS drives)
- Rugged Heavy Duty Full Metal construction, perfect for enterprise applications
- Multi-Flow Technology - provides excellent passive cooling
- Anti-Vibration Technology - creates a safe environment for hard drives or SSDs
- Active Power Technology (APT) - individual led only powers up if there is drive installed in the drive bay
- EMI Grounding - protects hard drives from electrical damage
- Locking latch for both SATA 7 pin data port and SATA 15 pin power port
Specifications:
|
|
|
Support Drive Size : |
2.5" SATA HDD/SSD | |
|
Compatible Drive Type : |
SATA / SAS (Support Single Channel SAS) | |
|
|
|
|
|
Drive Bay : |
1 x 3.5" drive bay | |
|
Host Interface : |
2 x 7pin SATA | |
|
Power Input : |
1 x SATA 15pin power | |
|
Transfer Rate : |
Up to 6 Gb/sec per SATA channel(Depending on drive speed) | |
|
Support HDD Capacity : |
No Limitation | |
|
Drive Cooling : |
Metal heat dispersion | |
|
|
|
Structure / Material : |
Full Metal | |
|
|
|
Drive Security : |
Thumb screw lock & 2-segment keylock | |
|
Product Dimension (L x W x H) : |
138 x 101.2 x 25.4 mm | |
|
|
|
Shipping (Package) Weight : |
465g | |
|
RAID Status LED Indicator : |
N/A | |
|
Drive Activity LED Indication : |
Drive power: solid green; HDD access: flashing green | |
|
Package contents : |
Device, user manual, screws, keys, drive ID plug | |
|
Product Name : |
Industrial Rugged Full Metal 2 x 2.5” SATA/SAS HDD & SSD Mobile Rack for External 3.5" Drive Bay | |
|
SATA Connector Insertion Rate : |
10,000 | |
|
|
|
Operating Temperature : |
0°C to 60°C (32°F to 140°F) | |
|
Storage Temperature : |
-35°C to 70°C (-31°F to 158°F) | |
|
Compliance : |
CE, RoHS, REACH | |
|
|
