RAIDSONIC We-Ra. IcyDock 2x6,3cm SAS/SATA HDD&SSD in 5,25"+ 1xslim ODD retail
|
|
RAIDSONIC We-Ra. IcyDock 2x6,3cm SAS/SATA HDD&SSD in 5,25"+ 1xslim ODD retail
-
Installeret
0GB
-
Max diske
2
-
RAID
Nej
-
Type
Intern
-
Diskstørrelse
2.5"
|
Ultra Slim/Slim ODD Bracket & Dual 2.5" SAS/SATA HDD/SSD Hot Swap Cage
for External 5.25" ODD Bay
MB732SPO-B

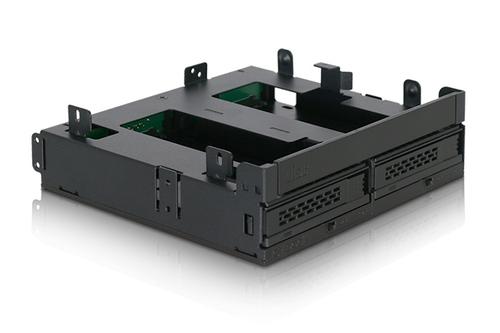

The ICY DOCK ExpressCage MB732SPO-B lets you use your 5.25” bay to its fullest extent by installing two hot-swappable 2.5” HDD / SSD bays, and a CD-ROM/DVD/Blu-Ray disc reader bay. To maximize compatibility, the disc reader bay can be used with either a slim (12.7mm) or ultra-slim (9.5mm) disc reader using an included multi-purpose spacer. Additionally, the innovative tray design expands compatibility to all 2.5” HDDs and SSDs, up to 15mm in height, and uses built-in pegs in place of screws for easy 100% tool-less installation. Full-metal chassis with plenty of ventilation holes keeps your drives safe from environmental damage and overheating issues.
The ExpressCage MB732SPO-B is perfect in systems needing to maximize their space efficiency; Small-form factor systems, Home-Theater PCs with media collections on drives and discs, and photo/video editors working with traditionally stored files and files stored on DVDs and Blu-Rays.
Features:
- Rugged metal housing with durable ABS caddies for maximum security and protection
- Fits 2x 5mm-15mm 2.5” SATA HDD/SSD & 1 x Ultra Slim / Slim optical disk drive (ODD)
- Fits any external 5.25" drive bay
- Multi-Flow Technology – provides excellent passive cooling
- Accommodates 2.5" drives with 5mm, 7mm, 9.5mm, 12.5mm & 15mm height
- Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
- Advanced ExpressCage drive caddy MB742TP-B with a new drive-gripping mechanism, strengthened
- single-piece latch, and tool-less drive installation
- Removable drive caddy system for easy maintenance
- Supports SAS (single channel)/SATA 6Gbps and hot-swap
- Supports SATA data and power cables with locking latches
- A Single SATA power cable powers both drives, reducing cable clutter
- Backed by 3-year manufacturer warranty
Specifications:
|
|
|
Product Name : |
Ultra Slim/Slim ODD Bracket & Dual 2.5" SAS/SATA HDD/SSD Hot Swap Cage for External 5.25" ODD Bay |
|
|
|
Model Number : |
MB732SPO-B |
|
|
|
Color : |
Black |
|
|
|
Drive Fit: |
2 x 2.5' SSD / HDD (Up to 15mm height)
1 x Ultra Slim ODD (9.5mm) or Slim ODD (12.7mm) |
|
|
|
Compatible Drive Type : |
SATA |
|
|
|
Number of Drives : |
3 |
|
|
|
Drive Bay : |
1 x external 5.25" drive bay |
|
|
|
Host Interface : |
2 x SATA 7Pin |
|
|
|
Power Input : |
1 x 15 pin SATA power connector |
|
|
|
Transfer Rate : |
Up to 6Gbps (Depending on hard drive speed) |
|
|
|
Support HDD Capacity : |
No Limitation |
|
|
|
Structure / Material : |
Metal & plastic |
|
|
|
Support Hot-Swap : |
Yes |
|
|
|
LED Indicator : |
Power (Solid blue); HDD Access (Flashing blue) |
|
|
|
Product Dimension (W x H x D) : |
145.8 x 41.3 x 135.0mm |
|
|
|
Product Weight : |
260.5g |
|
|
|
Shipping (Package) Weight : |
373g |
|
|
|
Package contents : |
Device, user manual, screw, Slimline SATA 6 Pin to SATA 15 Pin power cable |
|
|
|
SATA Connector Insertion Rate : |
10,000 |
|
|
|
Humidity : |
5%~65% RH |
|
|
|
Operating Temperature : |
0°C to 60°C (32°F to 140°F) |
|
|
|
Storage Temperature : |
-35°C to 70°C (-31°F to 158°F) |
|
|
|
Compliance : |
CE, RoHS, REACH |
|
|
|
Warranty : |
3 years |
