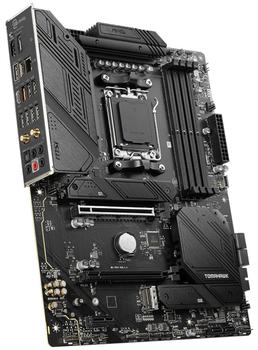

MSI MAG B650 TOMAHAWK WIFI

MAG B650 TOMAHAWK WIFI

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7600+(OC) MHz
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

• AMD B650

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

• 4x DDR5, Maximum Memory Capacity 256GB
• Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7600+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

• 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
• 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz

• 2x PCI-E x16 slot
  • Supports x16/x2 (For Ryzen™ 9000 and 7000 Series processors)
  • Supports x8/x2 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
  • Supports x4/x2 (For Ryzen™ 5 8500G processor)
• 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
  • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

• Realtek® ALC4080 Codec
• 7.1-Channel High Performance Audio
• Supports S/PDIF output
• Supports up to 32-Bit/384 kHz playback on front panel

• 3x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 6x SATA 6G

• Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 3x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)
• 1x USB 20Gbps Type C (Rear)

• Realtek® RTL8125B 2.5Gbps LAN

• AMD Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 6x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

• 4x EZ Debug LED

• Support for Windows® 11 64-bit, Windows® 10 64-bit

• ATX
• 243.84mmx304.8mm
