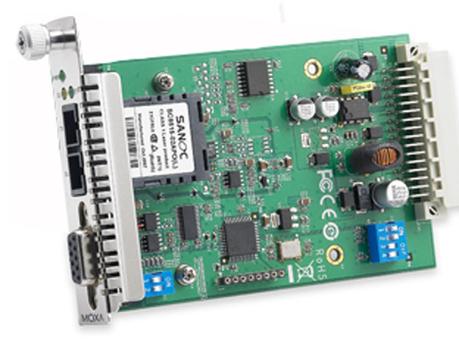

TCF-142-S-SC-RM
RS-232/422/485 to single-mode fiber slide-in module converter, SC connector
TCF-142-RM series
RS-232/422/485 to fiber slide-in modules for the NRack SystemTM
The TCF-142-RM series of serial-to-fiber converters are slide-in modules that work with the TRC-190 chassis. The modules convert from the RS-232, RS-422, or RS-485 signal to a fiber optic signal.
Highlights
- Extend RS-232/422/485 transmission up to:
- 40 km with single mode
- 5 km with multi-mode
- 1K or 150K ohm adjustable pull high/low resistor
- ''Ring''and''Point-to-Point''transmission supported
Specifications:
Fiber Connector
SC or ST
Wavelength
Single-mode 1310 nm
Multi-mode 850 nm
Tx Output
Single-mode > -5 dBm
Multi-mode > -5 dBm
Rx Sensitivity
Single-mode -25 dBm
Multi-mode -20 dBm
Connector
Terminal Block
RS-232 Signals
TxD, RxD, SGND
RS-422 Signals
TxD+, TxD-, RxD+, RxD-, SGND
RS-485-4w Signals
TxD+, TxD-, RxD+, RxD-, SGND
RS-485-2w Signals
Data+, Data-, SGND
Baudrate
50 bps to 921.6 Kbps
ESD Protection
15 KV for all signals
Operating Temperature
0 to 60°C (32 to 140°F)
Input Voltage
12 VDC
Power Consumption
150 mA @ 12 V
