Alpha SDM200 w/ Intel Celeron 6305Intel HD 620 DDR 4
|
|
Alpha SDM200 w/ Intel Celeron 6305Intel HD 620 DDR 4
|

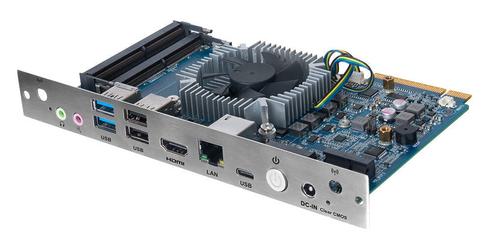

ALPHA SDM200
The SDM-L is powered by Tiger Lake UP3, Intel® 11th generation mobile processors built on 10nm process technology. The platform combines a high-performance CPU, up to 23% faster single thread performance, and up to 19% faster multi-thread performance. It supports vPro function as an option.
Compatible tests with displays from NEC®, Panasonic®, Newline® etc.
Features:
- 24/7 Operation
- Intel Celeron 6305 1.8 GHz CPU
- 4 GB DDR4 RAM-2666 Mhz (32 GB optional)
- 250 GB NVME SSD Harddisk (Larger optional)
- Windows 10 LTSC 21H2
- Industrial design fan
- SDM I/O: HDMI, DP1.4, USB3.2, UART, GSPI, I2C, PCIe, SYS_FAN
- 1 x LAN, 4 x USB
- 1 x HDMI
Specifications:
Processor
- Configurable TDP-up
: 15 W
- Configurable TDP-up frequency
: 1.8 GHz
- Processor front side bus
: 1800 MHz
- Processor cache type
: Smart Cache
- Processor cache
: 4 MB
- Processor cores
: 2
- Processor model
: 6305
- Processor family
: Intel® Celeron®
- Processor manufacturer
: Intel
Storage
- NVMe
: Y
- HDD capacity
: 250 GB
- Storage media
: SSD
- Total storage capacity
: 250 GB
Graphics
- On-board graphics card model
: Intel® UHD Graphics
- On-board graphics card
: Y
Software
- Operating system language
: Danish, English
- Operating system architecture
: 64-bit
- Operating system installed
: Microsoft Windows 10 IoT Enterprise
