LEVELONE Switch FSW-0513 POE F
|
|
LEVELONE Switch FSW-0513 POE F
-
Produkt
Ethernet PoE
-
Porte
5
-
Hastighed
100Mbps
|
Beskrivelse
Specifikationer
Relaterede produkter
FSW-0513
4-Port Fast Ethernet High Power PoE Switch
- 4-Port High Power PoE + 1 Port Uplink Fast Ethernet Switch
- Control Per PoE port on-off by dip switch
- Power Budget : 120W
- Plug and Play
- Power protection: OVP/OCP/OTP

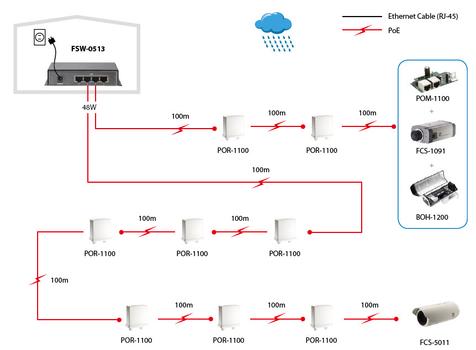

FSW-0513 is a 10/100 Mbps Fast Ethernet Switch with 4 High-Power Power over Ethernet ports and one uplink port. With a total power budget of 120W, FSW-0513 is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points. And with highpower PoE, the reach of devices can be extended hundreds of meters.
With 4 dip switches, each PoE port can be manually set for On-Off control. The internal PoE power supply can send up to 48 Watts to a single port. FSW-0513 is compact in size, making it ideal for desktop users with limited space. You also have option of installing several FSW-0513 in a 19” chassis (POC-6000) for a large-scale rack-mount PoE solution.
Power Protection
FSW-0513 supports power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), robust short-circuit protection and surge protection.
| Basis omskiftning RJ-45 Ethernet porte, antal | 5 |
| Basis omskiftning RJ-45 Ethernet porttype | Fast Ethernet (10/100) |
| Strømstik | DC-in-stik |
| Netværksstandarder | IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G understøttelse | Nej |
| Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX |
| Understøttede kabeltyper | Cat5 |
| Fuld duplex | Ja |
| Auto MDI/MDI-X | Ja |
| Auto-forhandling | Ja |
| MAC adresselabel | 1024 entries |
| Switch kapacitet | 1 Gbit/sek. |
| Opbevar-og-frem | Ja |
| Pakke videresendelsesrate (100 Mbps) | 14800 pps |
| Pakke videresendelsesrate (10 Mbps) | 14880 pps |
| Stativ-montering | Nej |
| Stabelbar | Nej |
| Produktfarve | Sort, Grå |
| LED-indikatorer | Uplink, LAN, PoE, Strøm |
| Tænd-/slukkontakt | Ja |
| Oprindelsesland | Taiwan |
| Certificering | FCC, CE |
| Bufferstørrelse | 48 KB |
| Udgangsspænding | 56 V |
| Udgangsstrøm | 2,15 A |
| Strømforbrug (typisk) | 120 W |
| Strømbeskyttelsesfunktioner | Overstrøm, Kortslutning |
| Strøm over Ethernet (PoE) | Ja |
| Power over Ethernet (PoE) porte, antal | 1 |
| Power over Ethernet (PoE) effekt pr. port | 52 W |
| Total Power over Ethernet (PoE) | 120 W |
| Driftstemperatur (T-T) | 0 - 45 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
| Bredde | 120 mm |
| Dybde | 90 mm |
| Højde | 28 mm |
| Vægt | 800 g |
| Kabler inkluderet | Vekselstrøm |
| Brugervejledning | Ja |
| AC-adapter inkluderet | Ja |
| Pakkebredde | 232 mm |
| Pakkedybde | 148 mm |
| Pakkehøjde | 80 mm |
| Harmoniseret systemkode (HS) | 85176990 |
