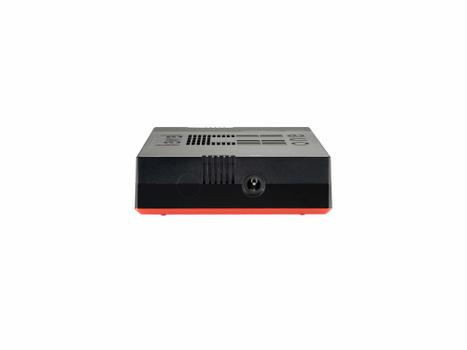

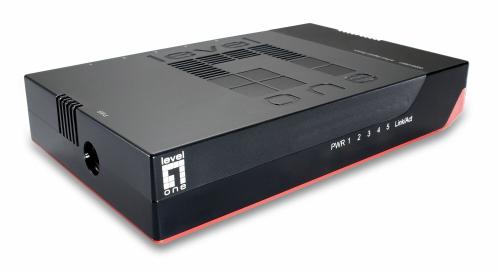

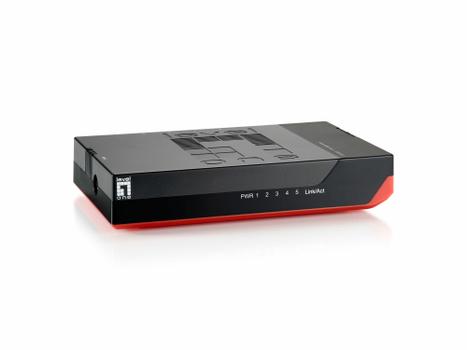

LEVELONE 5PORT GIGABIT DESKTOP SWITCH
|
LEVELONE 5PORT GIGABIT DESKTOP SWITCH
-
Produkt
Ikke administreret
-
Porte
5
-
Hastighed
1Gbps
|
Beskrivelse
Specifikationer
Relaterede produkter
GSW-0507
5-Port Gigabit Switch
- Supports back-pressure and flow control
- Features Store-and-Forwarding architecture
- Supports 1k MAC address entries, 832K bits buffer memory and 12K Jumbo frame rate
- Extensive LED indicators for network diagnostics
- Supports MDI/MDI-X auto crossover
- Supports half-duplex and full-duplex autodetection
- Save up to 63% power with LevelOne Green Technology
Gigabit Connectivity
LevelOne's GSW-0507 is a high-performance 10/100/1000 Mbps Gigabit Ethernet switch with 5 Gigabit Ethernet ports. It provides for flexible network architecture so users can take advantage of the lightning fast speeds of a Gigabit network without bandwidth limitations. GSW-0507 is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance. It is 1000BASE-T compliant and supports full- and half duplex auto-detection modes. It further supports
MDI/MDI-X auto crossover and IEEE802.3x flow control.
Save Power With LevelOne Green Technology
Active Link Detection:
A LevelOne Green device can tell if there is activity on each individual LAN port. If a 5-port switch only has 3 active devices connected to it, power is saved because no traffic is routed to the 2 inactive ports.
Cable Length Detection:
The switch is able to detect the distance of the connected device and adjusts its power accordingly. For example, if you have a LevelOne Green switch a computer connected to a 10-meter cable will consume
less power than a computer connected to a 100-meter cable.
Sleep Mode:
The device will enter sleep/standby mode when the connected devices are powered down and no active links are detected. This helps save energy consumption during extended periods of network inactivity, such as nights, weekends and holidays.
Switch-type | Ikke administreret |
Basis omskiftning RJ-45 Ethernet porte, antal | 5 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (kobber) porte, antal | 5 |
Strømstik | DC-in-stik |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
MAC adresselabel | 8192 entries |
Switch kapacitet | 10 Gbit/sek. |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Pakke videresendelsesrate (1 Gbps) | 1488000 pps |
Pakke videresendelsesrate (100 Mbps) | 148000 pps |
Pakke videresendelsesrate (10 Mbps) | 14880 pps |
Pakke bufferlager | 1 MB |
Stativ-montering | Nej |
Stabelbar | Nej |
Produktfarve | Sort, Rød |
LED-indikatorer | Aktivitet, Link, Strøm |
Kan monteres på væggen | Ja |
Oprindelsesland | Kina |
Certificering | CE, RoHS, FCC |
Flashhukommelse | 1024 MB |
Palle nettohøjde | 169 cm |
Palle nettodybde | 80 cm |
Palle nettobredde | 120 cm |
Strømforsyning inkluderet | Nej |
Indgangsstrøm | 1 A |
Strømforbrug (typisk) | 3 W |
Strøm over Ethernet (PoE) | Nej |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Bredde | 149,5 mm |
Dybde | 89 mm |
Højde | 27 mm |
Vægt | 135 g |
Hurtig start guide | Ja |
AC-adapter inkluderet | Ja |
Pakketype | Kasse |
Pakkebredde | 92 mm |
Pakkedybde | 142 mm |
Pakkehøjde | 92 mm |
Pakkevægt | 300 g |
Harmoniseret systemkode (HS) | 85176990 |
