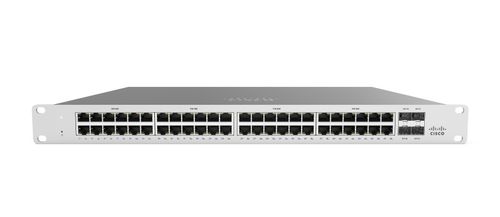

CISCO Meraki Cloud Managed MS120-48
|
CISCO Meraki Cloud Managed MS120-48
-
Produkt
Administreret
-
Porte
48
-
Hastighed
1Gbps
|
Beskrivelse
Specifikationer
Сisco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks. Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches. All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
Switch-type | Administreret |
Switch lag | L2 |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
Basis omskiftning RJ-45 Ethernet porte, antal | 48 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Antal installerede SFP moduler | 4 |
Port til konsol | RJ-45 |
Netværksstandarder | IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1w |
10G understøttelse | Nej |
Broadcast stormkontrol | Ja |
Auto MDI/MDI-X | Ja |
Spanning tree protokol | Ja |
VLAN understøttelse | Ja |
Antal VLAN'er | 4094 |
MAC adresselabel | 32000 entries |
Switch kapacitet | 104 Gbit/sek. |
Jumbo Frames support | Ja |
Jumbo rammer | 9578 |
DHCP funktioner | DHCP server,DHCP snooping,DHCP client |
Adgangskontrolliste (ACL) | Ja |
IGMP snooping | Ja |
BPDU filtrering/beskyttelse | Ja |
Root beskyttelse | Ja |
Multicast-understøttelse | Ja |
Administrationsprotokoller | SNMP |
Udvekslingsprotokoller | RSTP, STP, LLDP, CDP |
Stativ-montering | Ja |
Formfaktor | 1U |
Farve på produkt | Grå |
Gennemsnitstid mellem fejl (MTBF) | 692887 t |
AC indgangsspænding | 100 - 240 V |
AC frekvens | 47/63 Hz |
Strømforbrug (normal) | 16 W |
Strømforbrug (maks.) | 882 W |
Strøm over Ethernet (PoE) | Nej |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Bredde | 440 mm |
Dybde | 250 mm |
Højde | 44 mm |
Vægt | 4,06 kg |
